Electrical rough in day 11

More electrical rough in work today. Since I removed the soffit last weekend, the wires for the soffit lights are now ran.

Electrical rough in

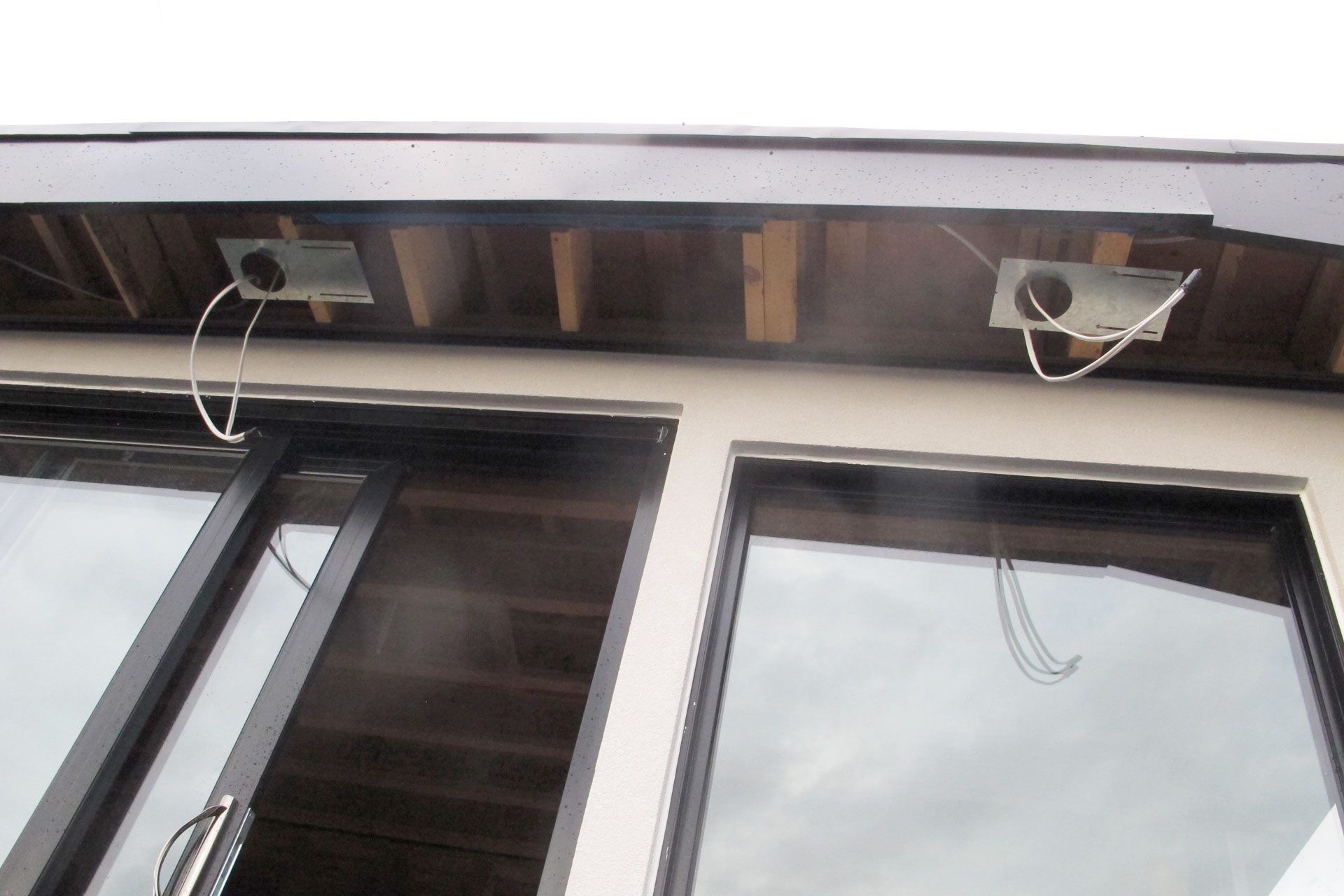

There are 3 soffit lights on the south side.

Electrical rough in  Electrical rough in

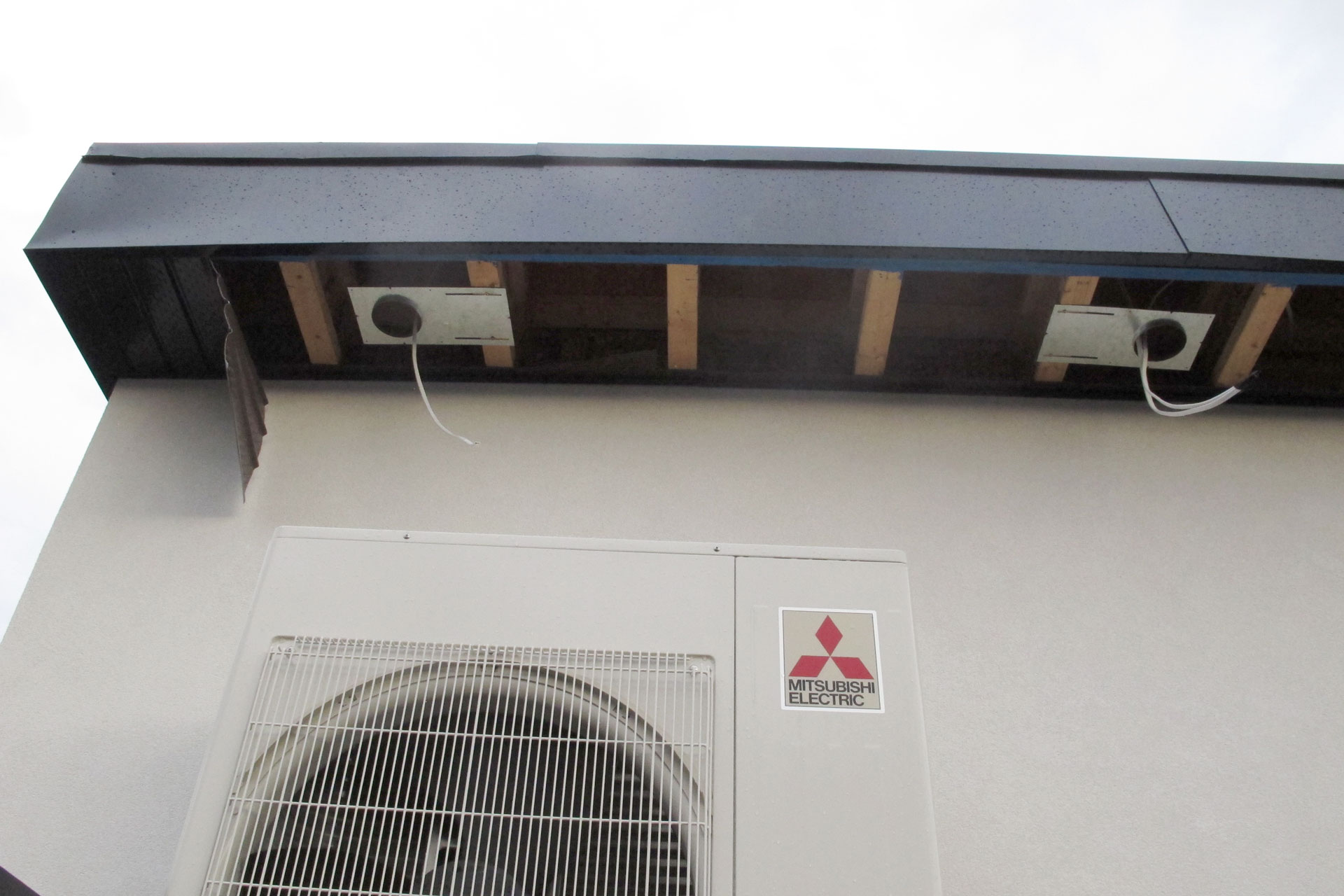

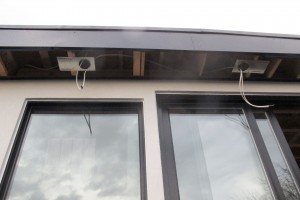

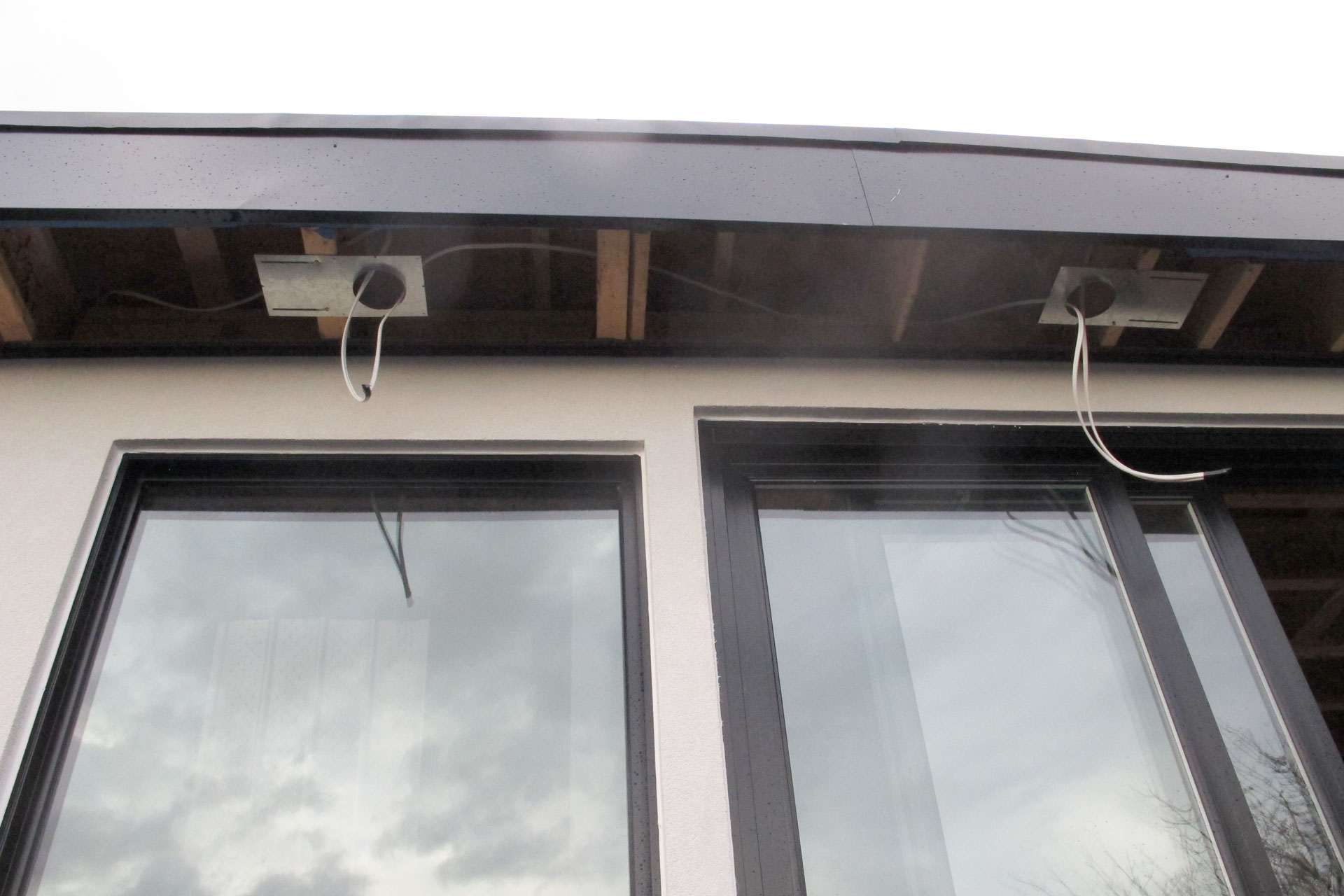

There are 2 soffit lights on the east and west side.

Electrical rough in

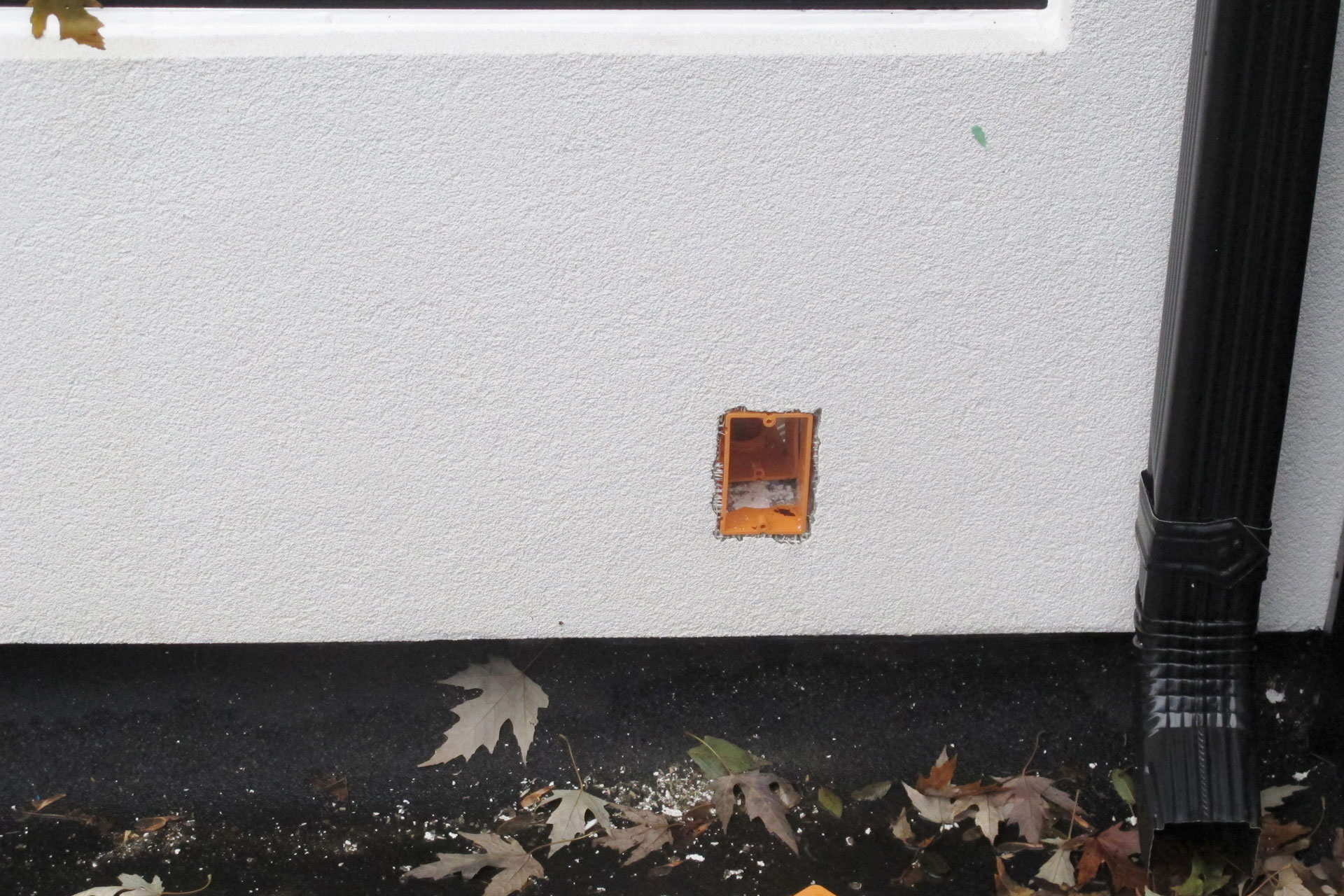

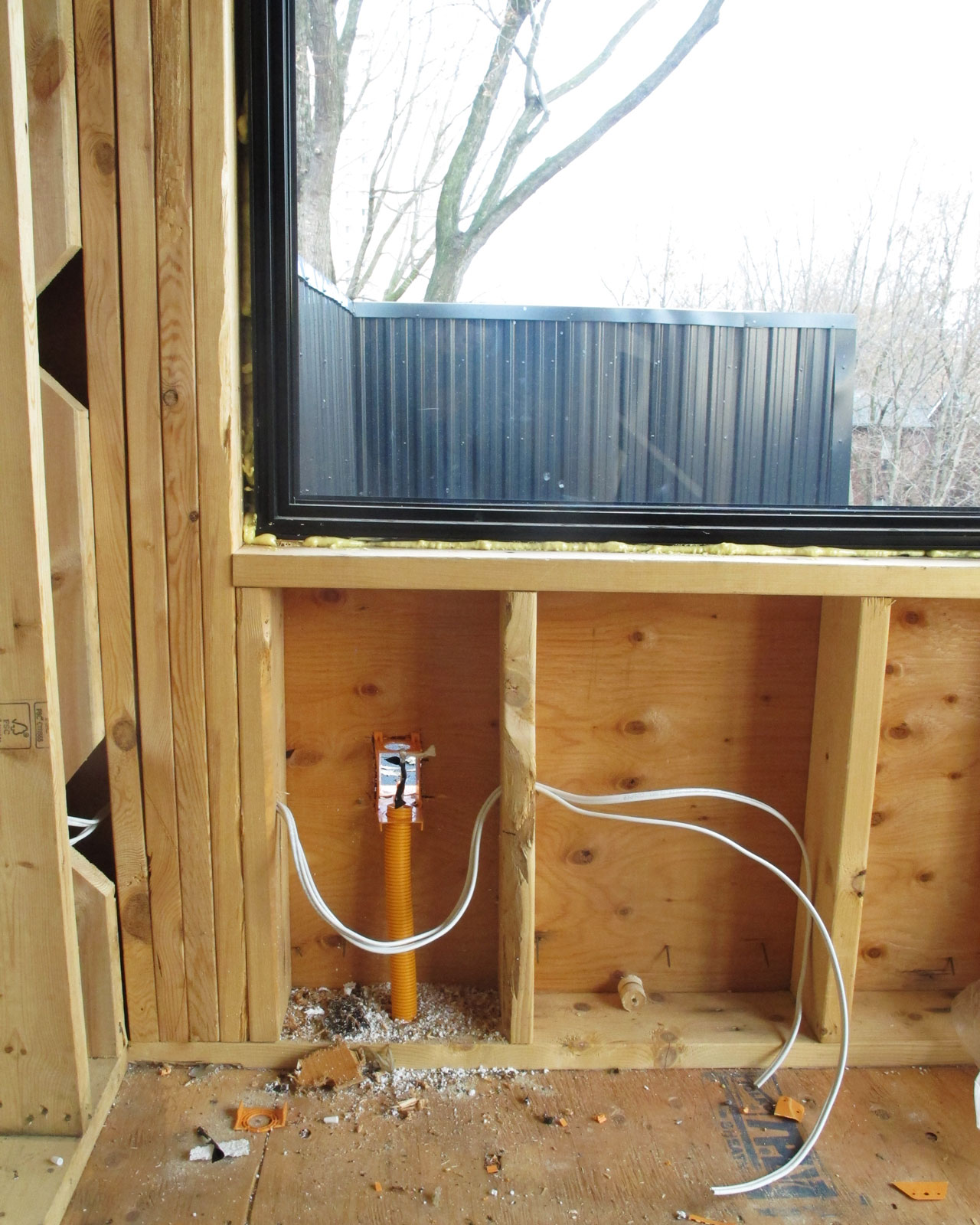

The also started the work on my low voltage conduits. I wanted a set of conduits to be run throughout the house so that I can run any kind of low voltage wires such as Cat6 network wires or other kind of wires later. On the 3rd floor, I wanted an outdoor connection. The conduits I used here are Resi-Gard flexible raceway in 1 inch size. The low voltage brackets used is Carlon SC100A low voltage brackets which has an integrated ring to fit the Resi-Gard raceways.

Electrical rough in

Since the roof top terrace is my entertainment area, it must be well wired.

Electrical rough in

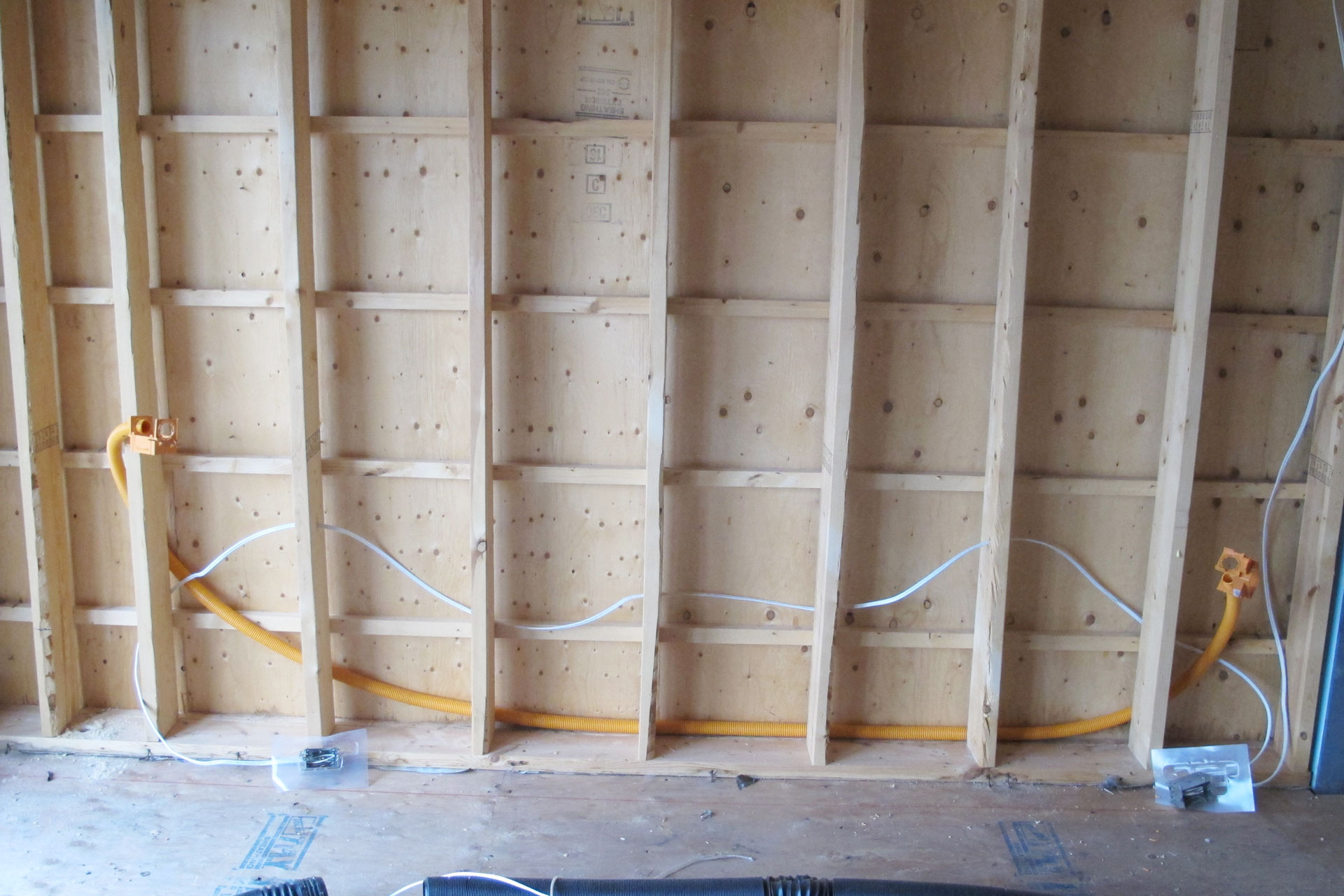

This is in the bedroom. There will be connection on either side of the bed. But the conduits needs to be changed since it is now running behind the 2×6 stud and will be blocking my spray foam.

Electrical rough in

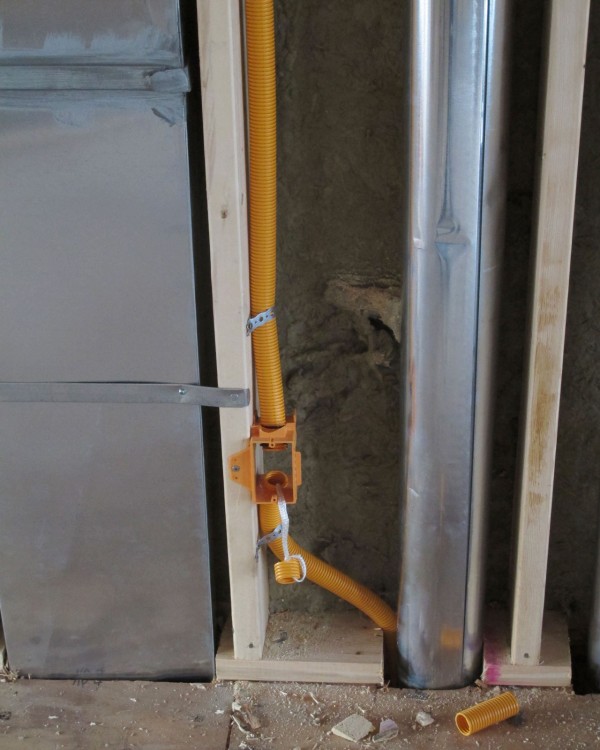

In the family room where the TV is.

Electrical rough in

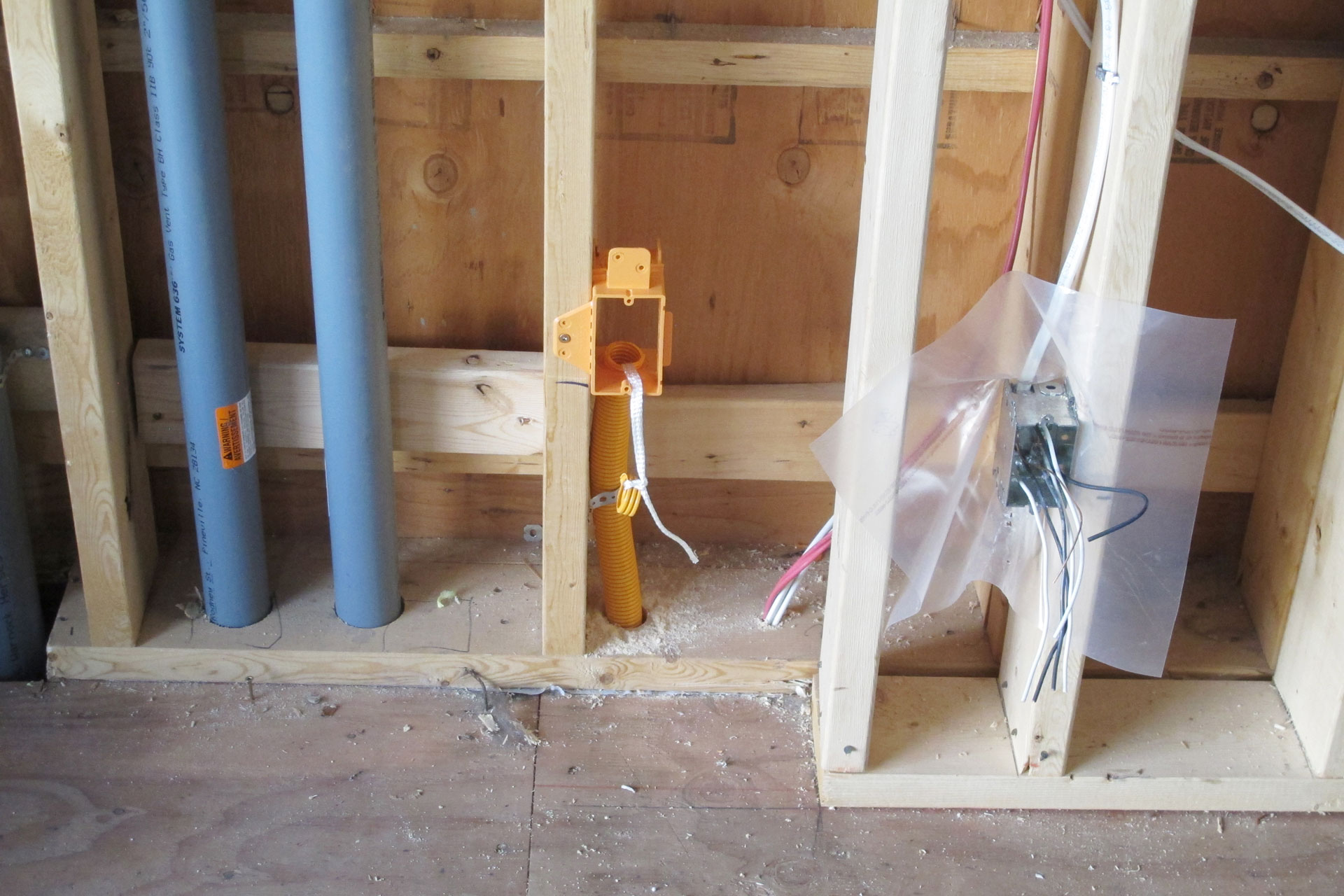

Another connection slightly further away.

Electrical rough in

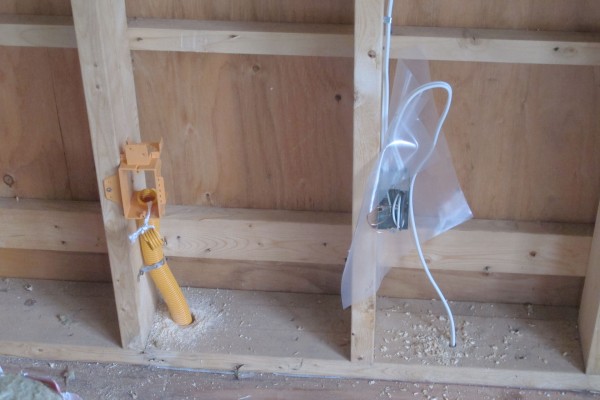

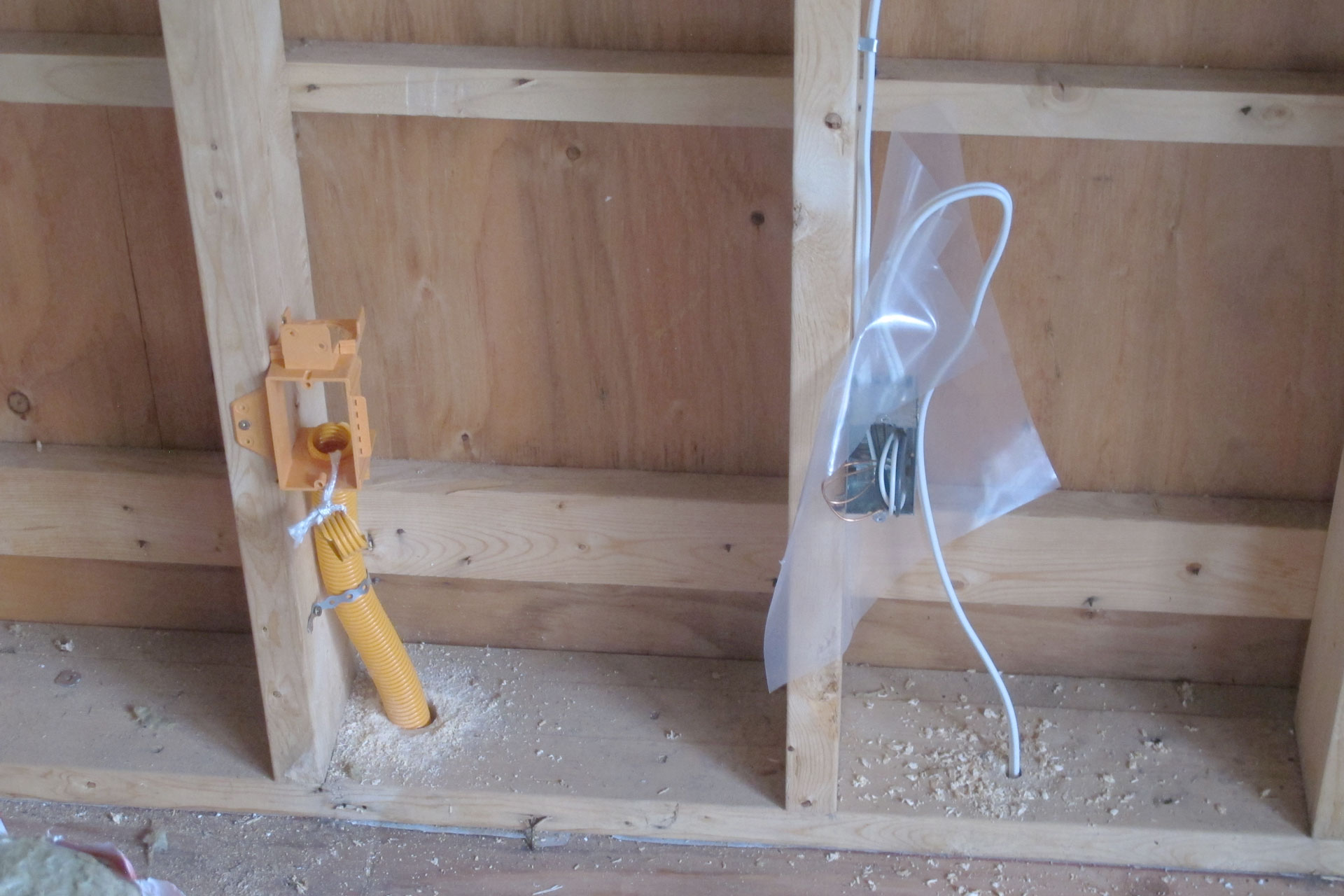

This one is in the living room, but they got the location wrong. This wall will be filled with bookcase. It should have been located just to the right of the power socket.

Electrical rough in

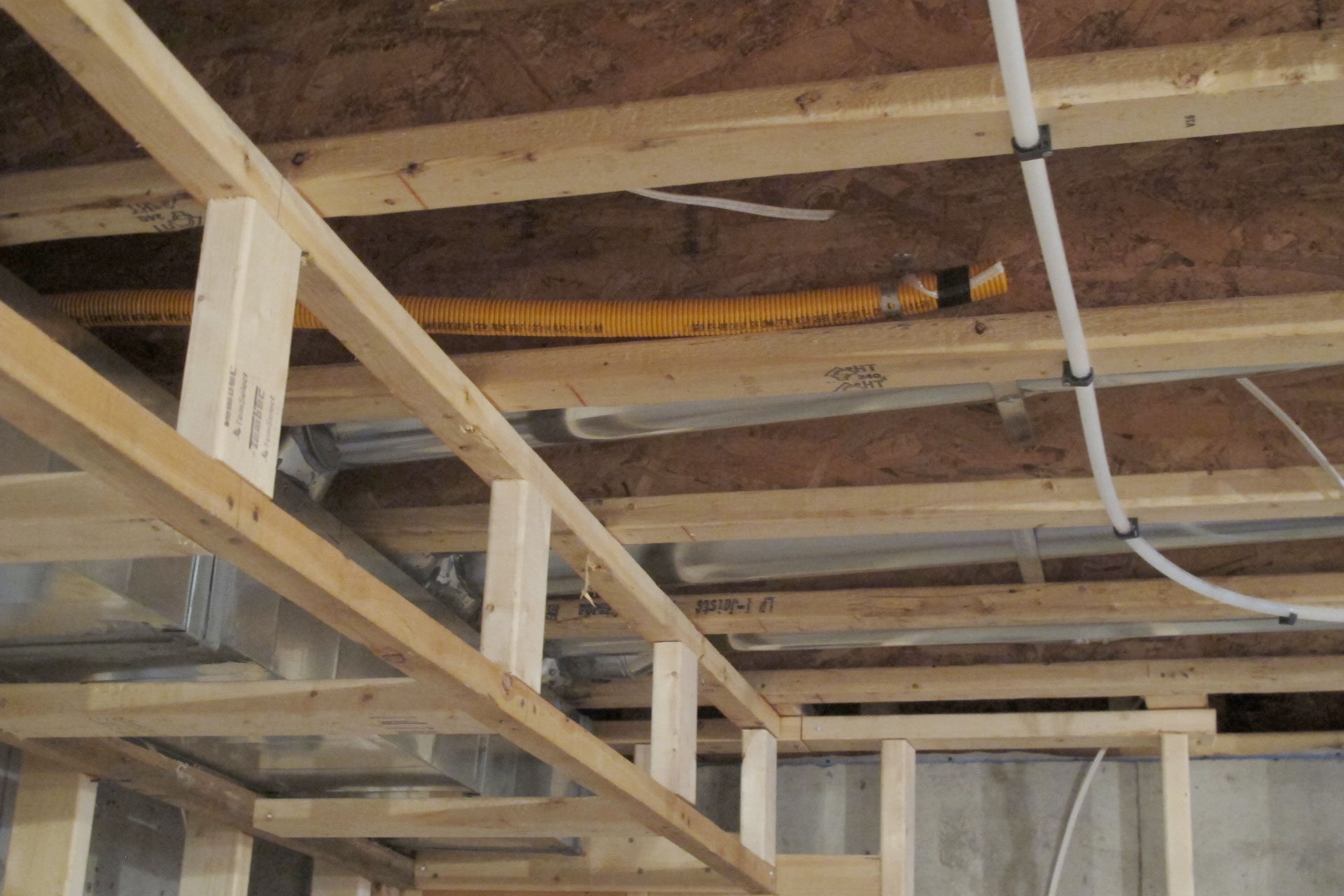

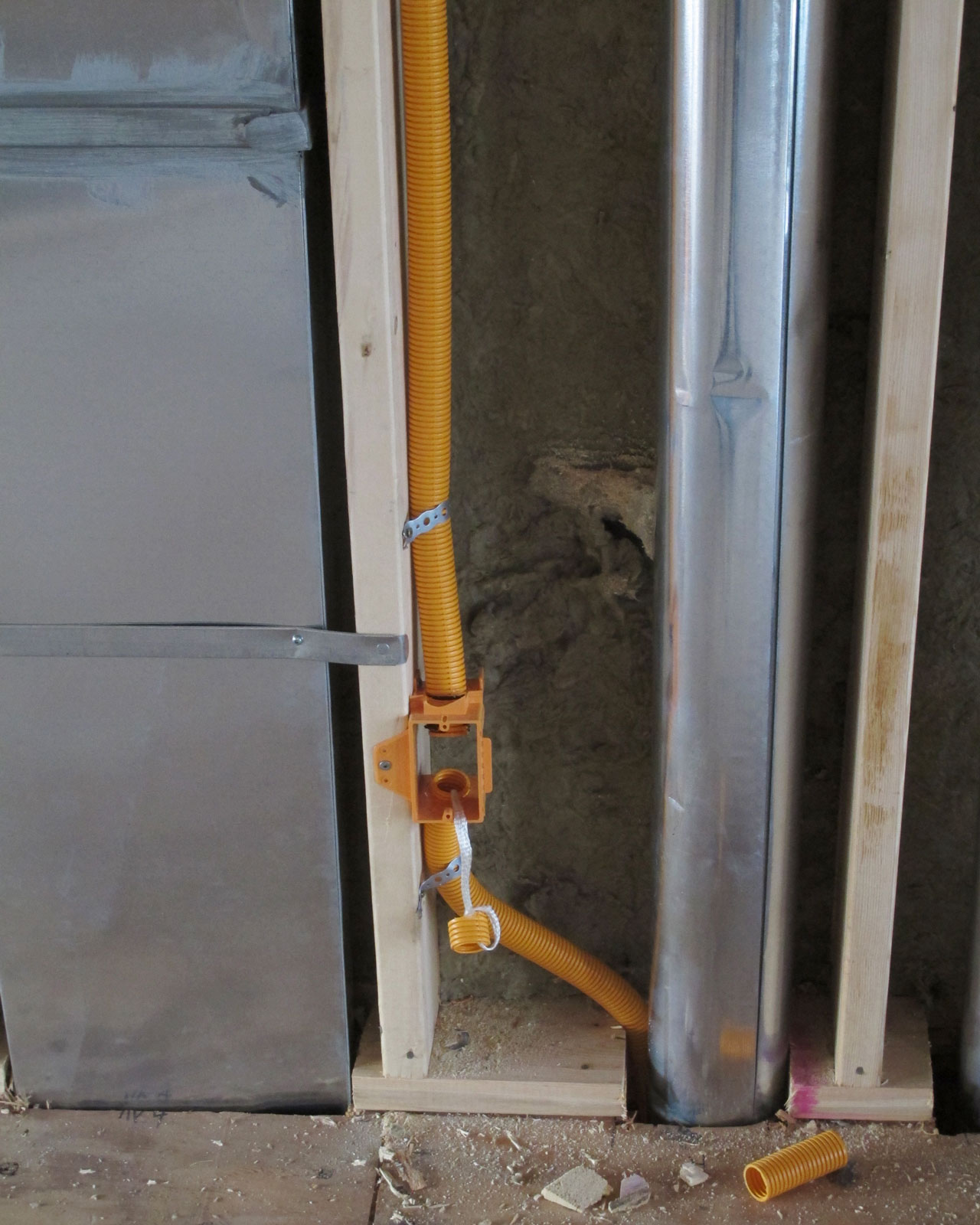

Down in the basement I had the electricians to just leave the conduits open like this. I will run the wires then under the joists since there will be a drop ceiling.

Electrical rough in
